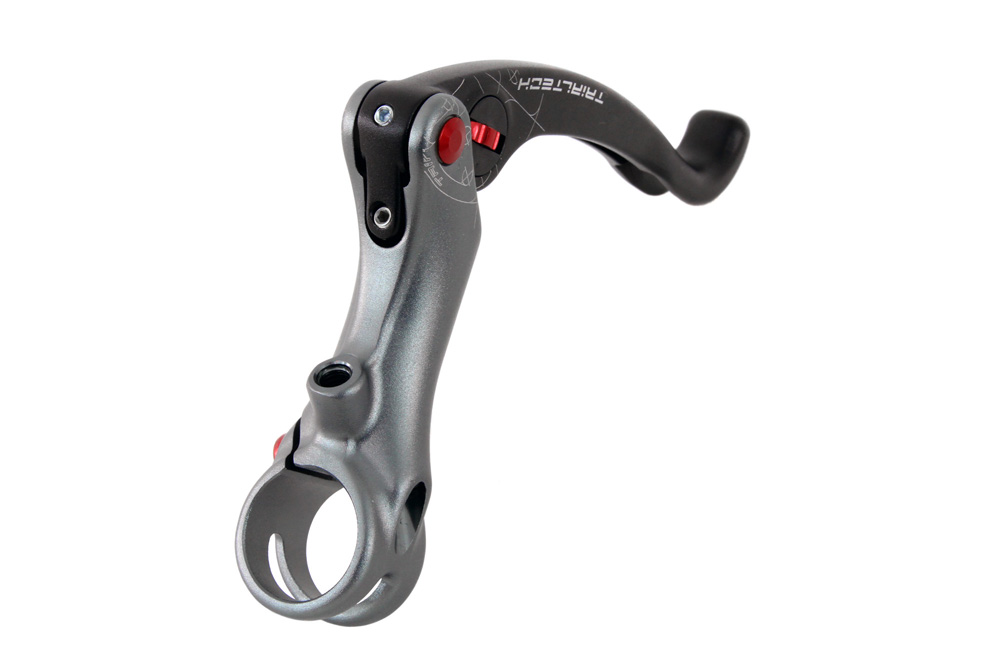

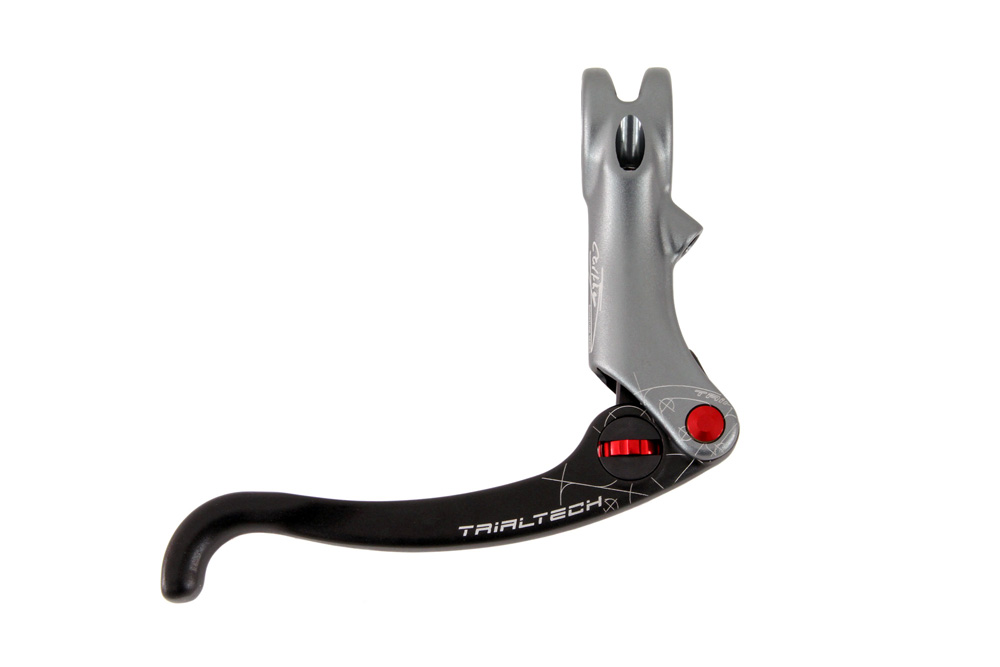

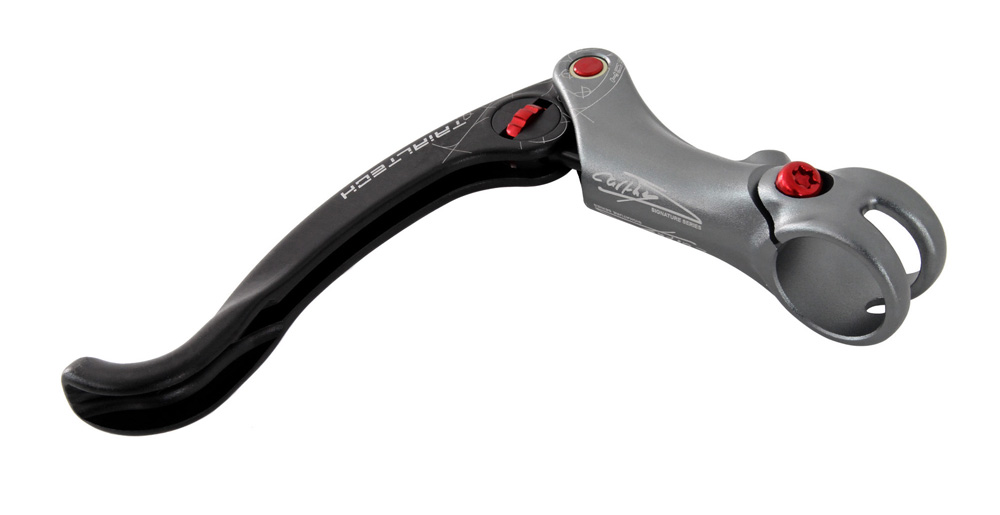

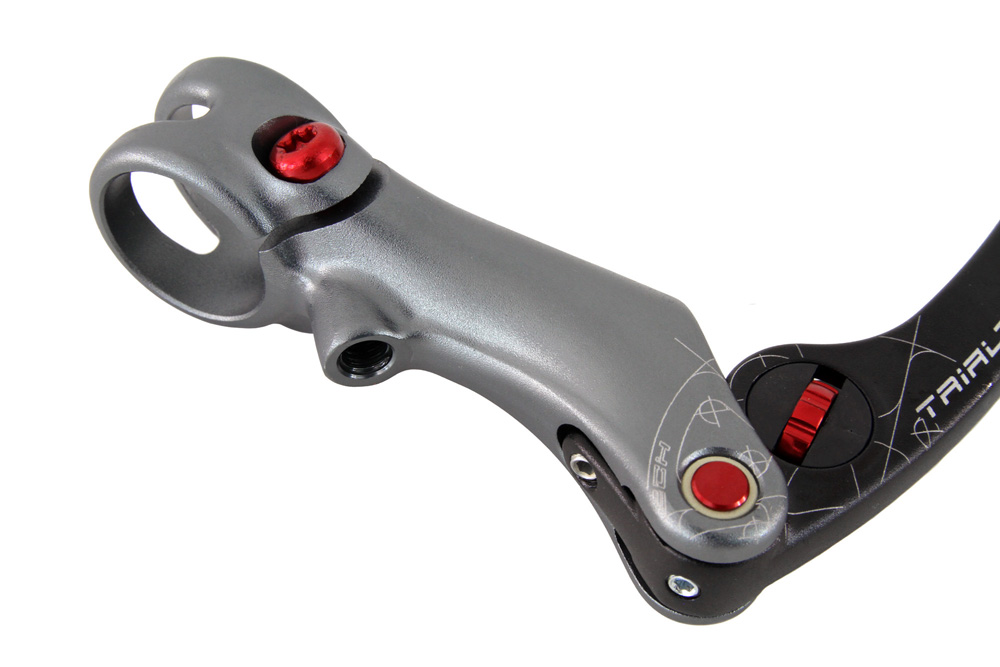

Carthy Signature Series Rim Brake Lever
Carthy Signature Series Rim Brake Lever
Carthy Signature Series Rim Brake Lever
Carthy Signature Series Rim Brake Lever

Carthy Signature Series Rim Brake Lever

Developed in association with the World's top riders, this lever has been tested and proven at the highest level of competition.

- Forged main body with precision CNC machined features.
- Forged lever blade with CNC machined pocket to remove excess material and reduce weight.
- Ergonomic shape feels supportive and comfortable with a wide range of reach adjustment.
- 13mm piston and carefully selected leverage ratios allow a shorter and stiffer blade to be used without a loss in overall power.
- IGUS pivot bearings from Germany for smooth pivot with no slack.
- Replaceable pivot pin features locking grub-screw and unique hidden 'backup' securing system.
- Injection molded piston using tough, low moisture absorbing engineering plastic specifically designed for use with Trialtech brake fluid.
- Custom made scraper seal made in the UK helps prevent debris causing premature wear of the hydraulic seal.
- Optimal bleed port position, air always rises to the bleed port exit, helping improve fluid change ease and quality.
- Low profile 'leg-saver' split clamp using a custom forged 7075 bolt.
- Optimal main hose exit angle helps prevent tangled and damaged hoses.
- Custom extra-tough M6 cr-moly bleed blanking screw.
- Supplied with a unique custom made bleed adaptor and hose.
- Left or right side specific but can be flipped in urgent situations (the pivot pin should be turned around for added security).
- Unique sprung TPA indexed/locking feature prevents the adjuster moving during use.
- All spares available separately, including a choice of coloured fitting kits.
- Compatible with all slave cylinders.
- Stylish Carthy Signature Series finish and technical bashring laser logos.
- Weight: 75.7g


Please note: Best performance achieved using mineral oil or Trialtech rim brake fluid. NOT compatible with DOT fluids.
